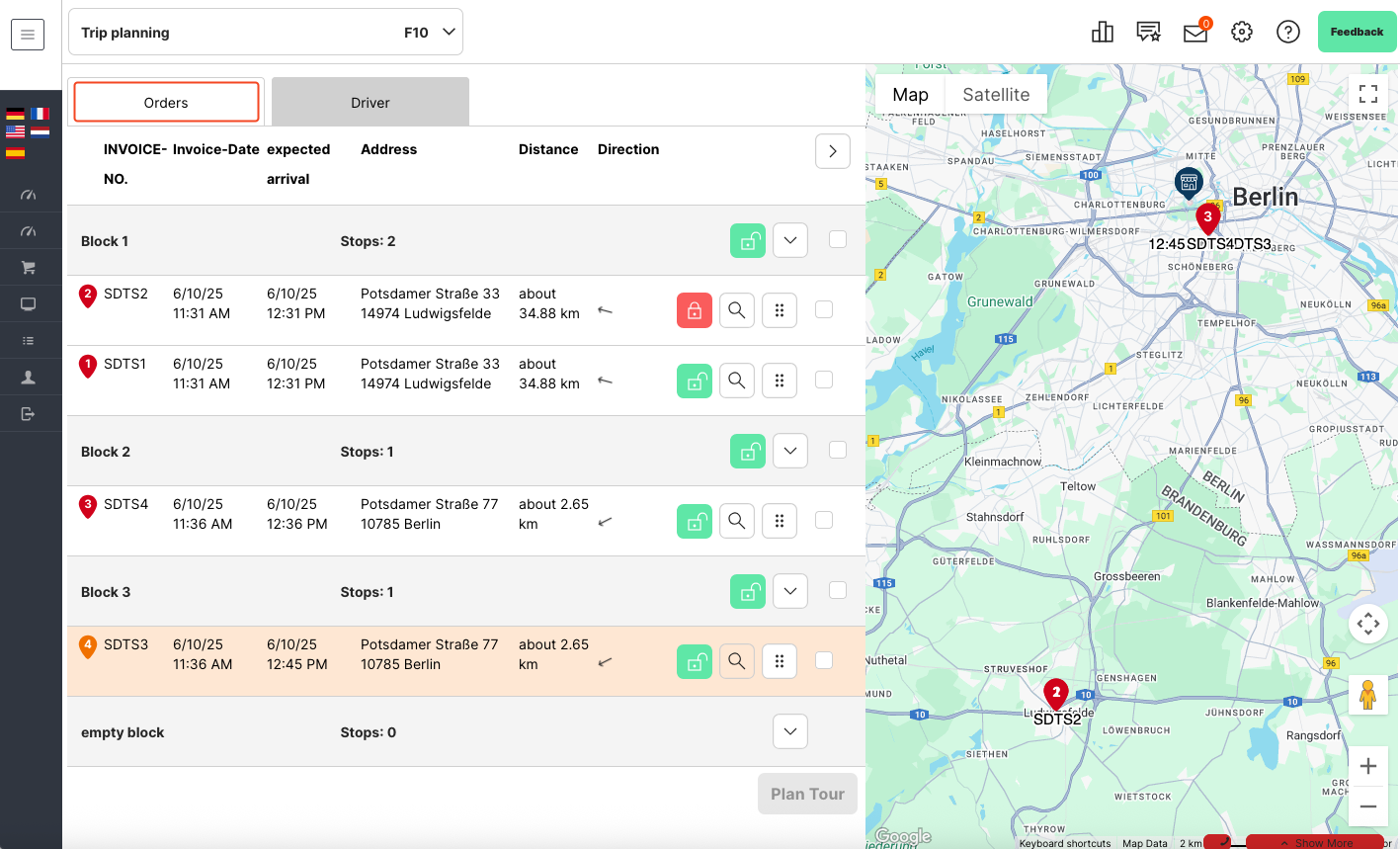

Marker: Sequential order number.
Invoice-No.: The invoice number is displayed here.
Invoice date: The invoice date is displayed here, along with the order time.
Expected arrival: The expected arrival time is displayed here, along with the date and time.
Address: The order address/customer address is displayed here.
Distance: Straight-line distance in kilometers to the store address.
Direction: The direction is displayed here with an arrow symbol, showing the direction of the order address from the store address.
Furthermore, the tours are marked in color if the delivery period has been exceeded. The delivery period can be set under Admin: Store management > Stores > Edit > Settings > Delivery and take away settings > Delivery time meter - green + Delivery time meter - yellow.
Pre-orders: Pre-orders are displayed here in a different color to distinguish them from immediate tours - however, this only applies to pre-orders that have reached the point at which they receive an invoice number. If pre-orders that do not yet have an invoice number (and are not due to have one for a long time) are also to be displayed in trip planning, the option "Displaying pre-orders in tour planning and the driver terminal" (under Admin: Store management > Stores > Edit > Settings > Disposition / tour management > Displaying pre-orders in tour planning and the driver terminal > Yes) must be activated in the store settings.
Magnifying glass icon

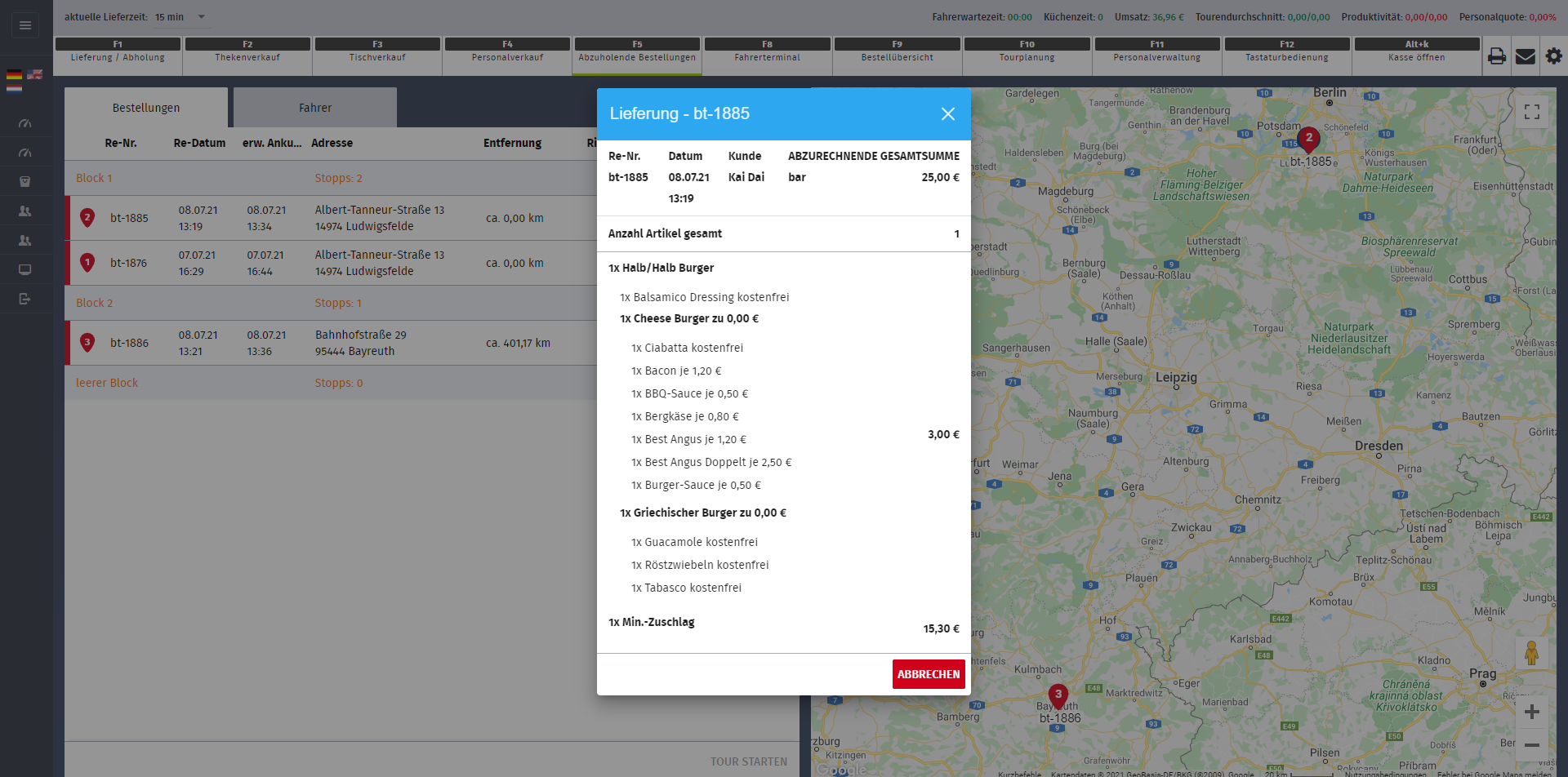

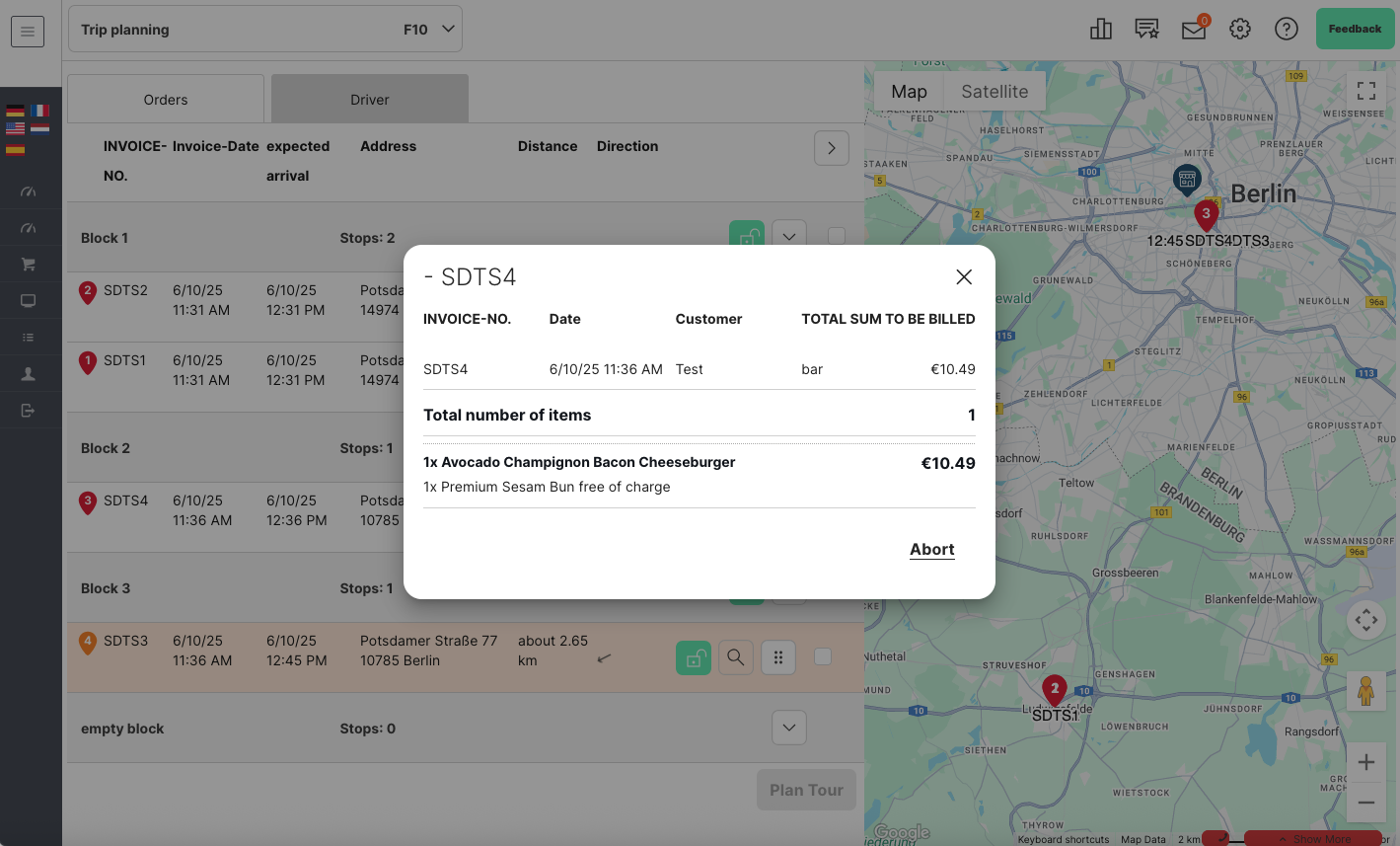

The order details can be viewed by clicking the magnifying glass icon.
Lock icon
Once the setting "Activate manual assignment of tours in blocks (tour planning only)" (under Admin: Store management > Stores > Edit > Settings > Disposition / tour management > Activate manual assignment of tours in blocks (tour planning only)) has been set to "Yes", the buttons for "Lock" (click on the open lock icon) and "Unlock" (click on the closed lock icon) tours or tour blocks will be available.
Entire blocks can be locked so that no new orders are automatically assigned to that block.
Sort icon

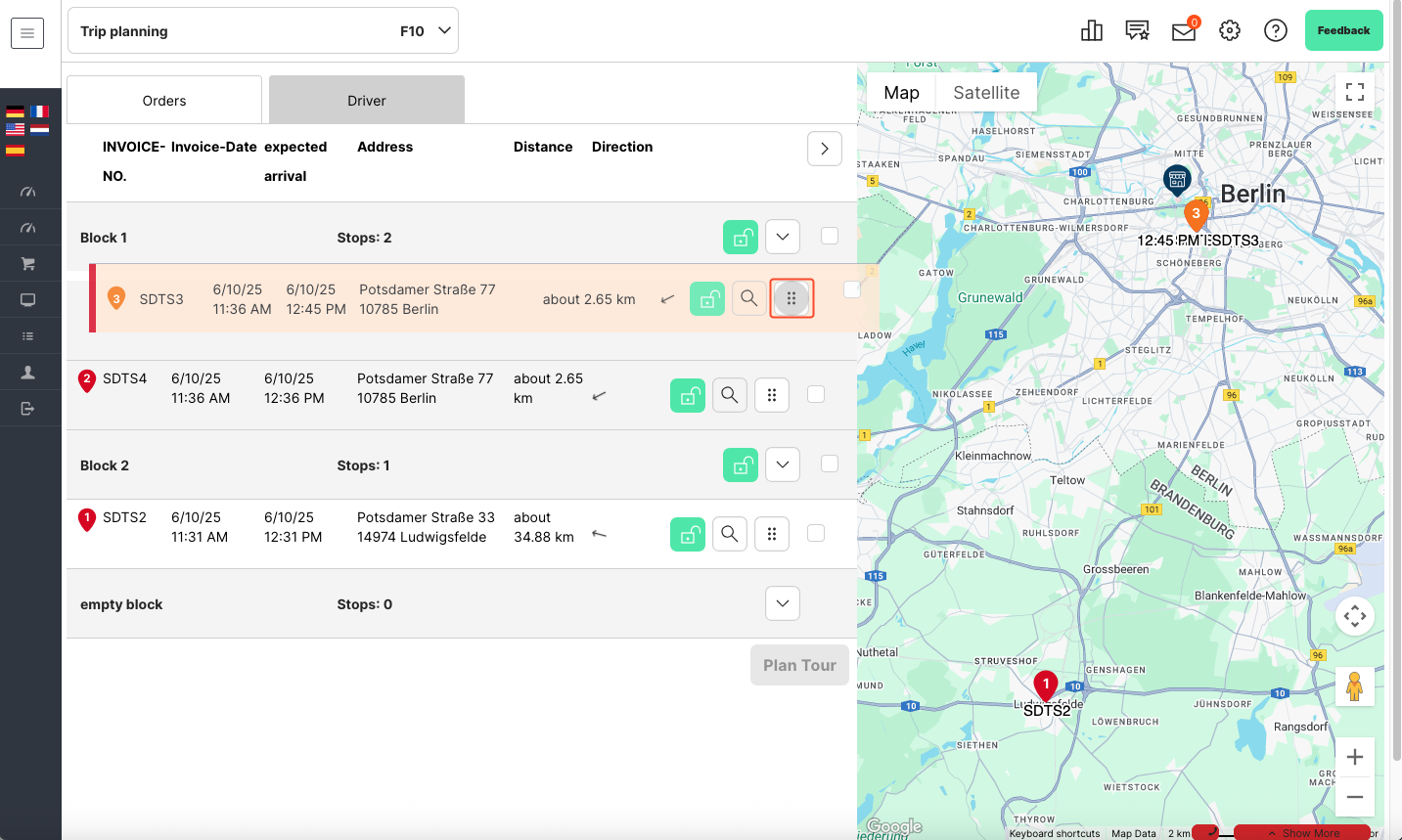

With the "Sort" icon, you can rearrange the order of the tour blocks via drag-and-drop. However, you cannot reorder the individual orders.
This also requires the option "Activate manual assignment of tours in blocks (tour planning only)" (under Admin: Store management > Stores > Edit > Settings > Disposition / tour management > Activate manual assignment of tours in blocks (tour planning only) > Yes).

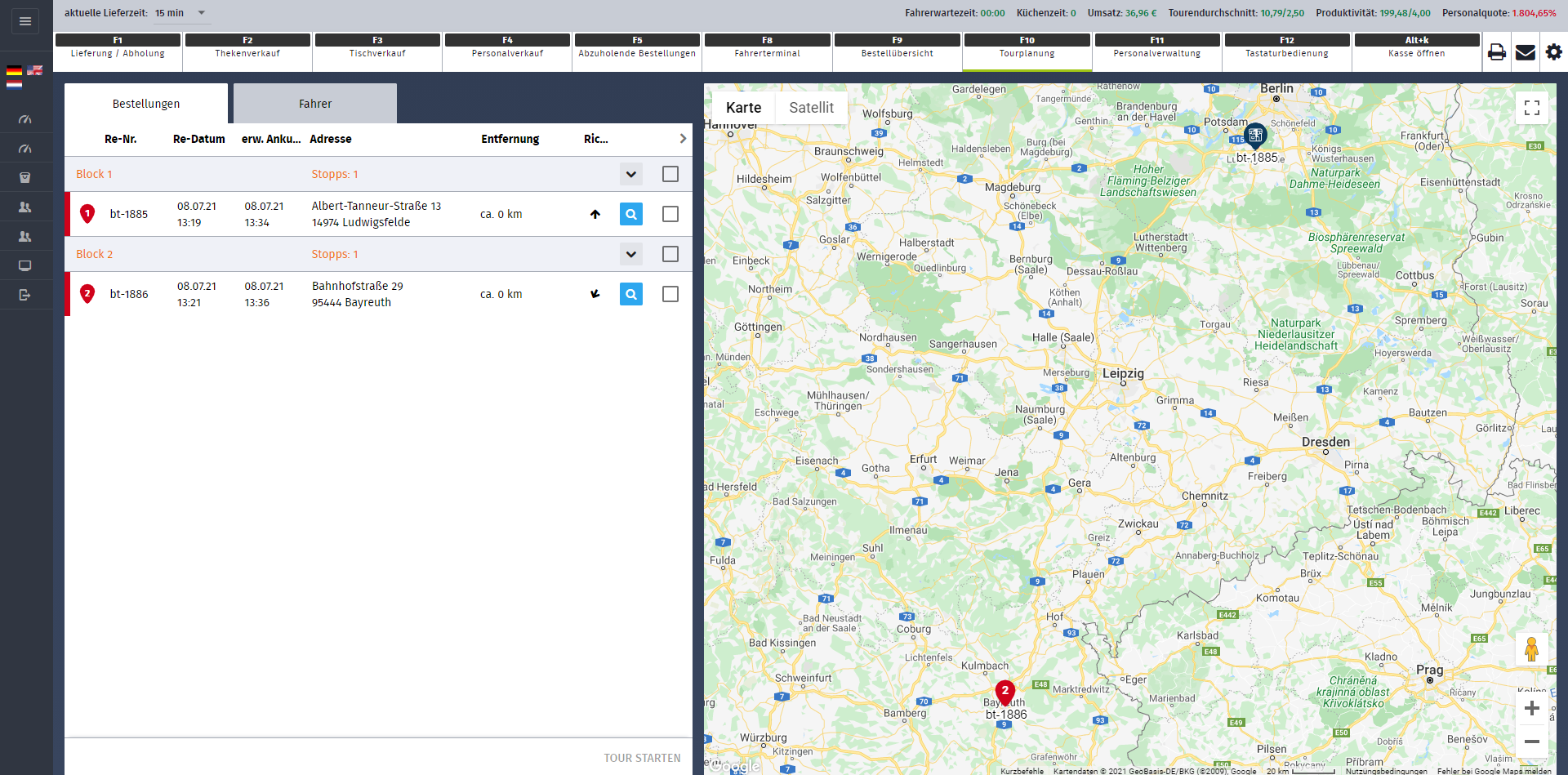

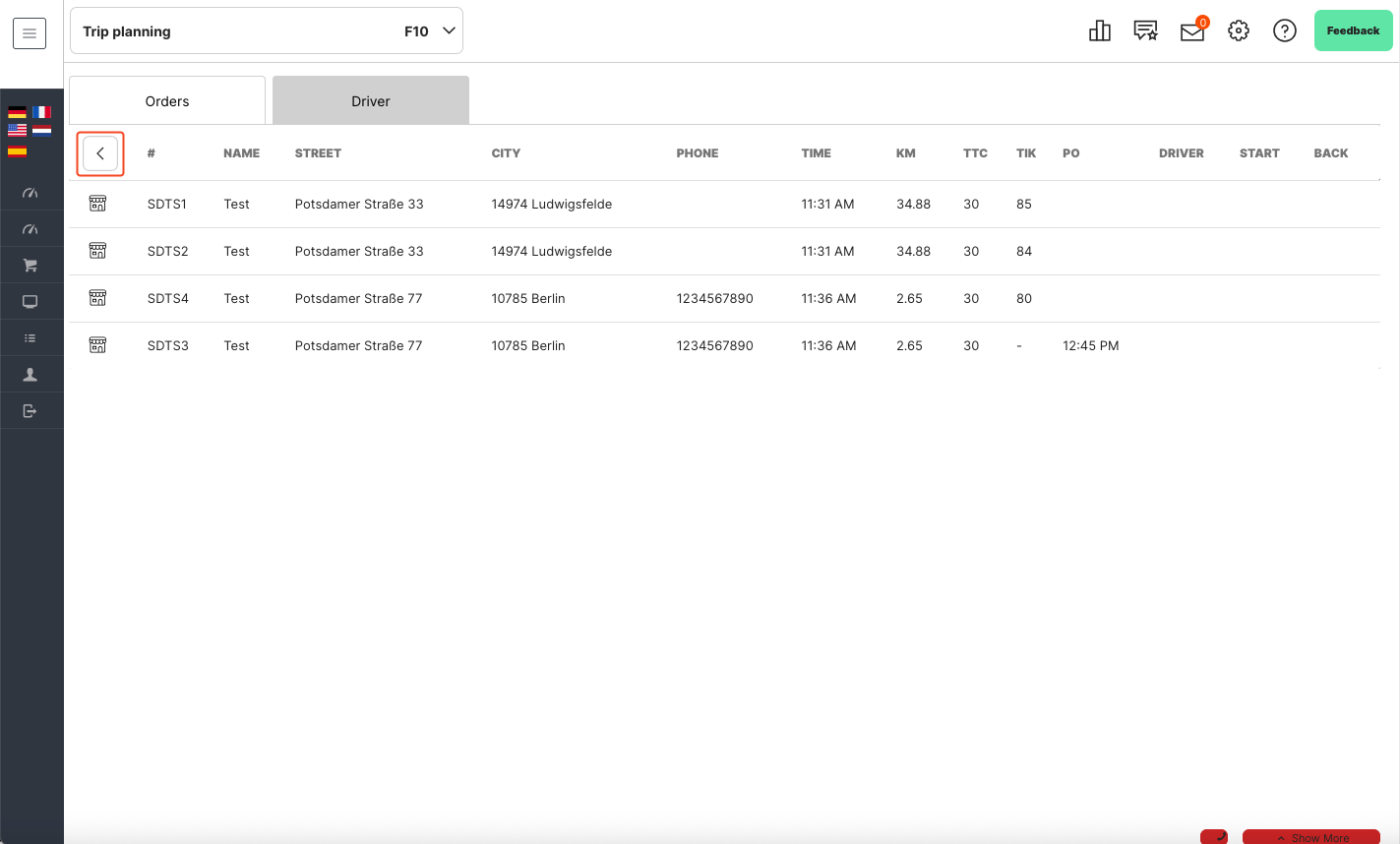

Advanced view

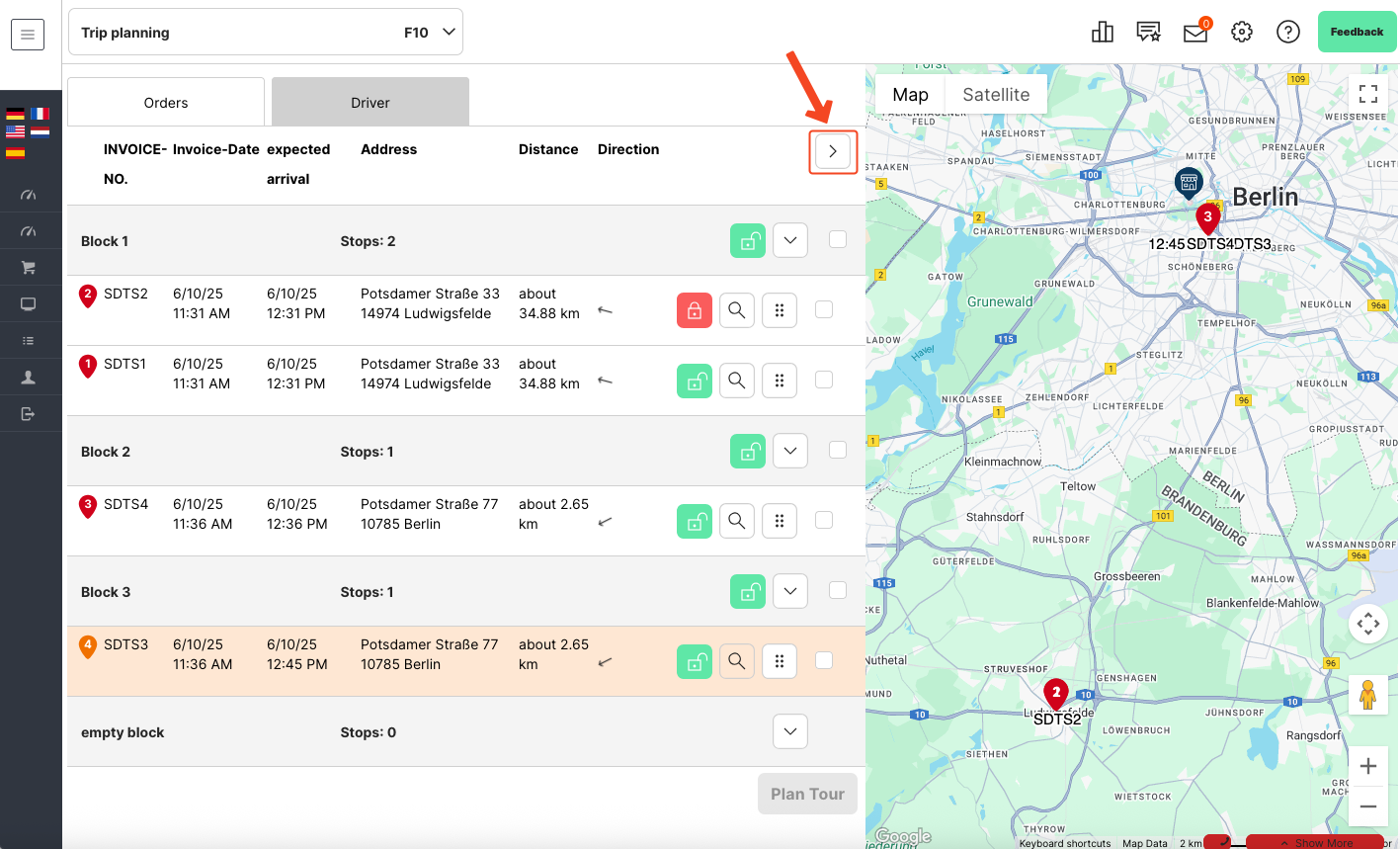

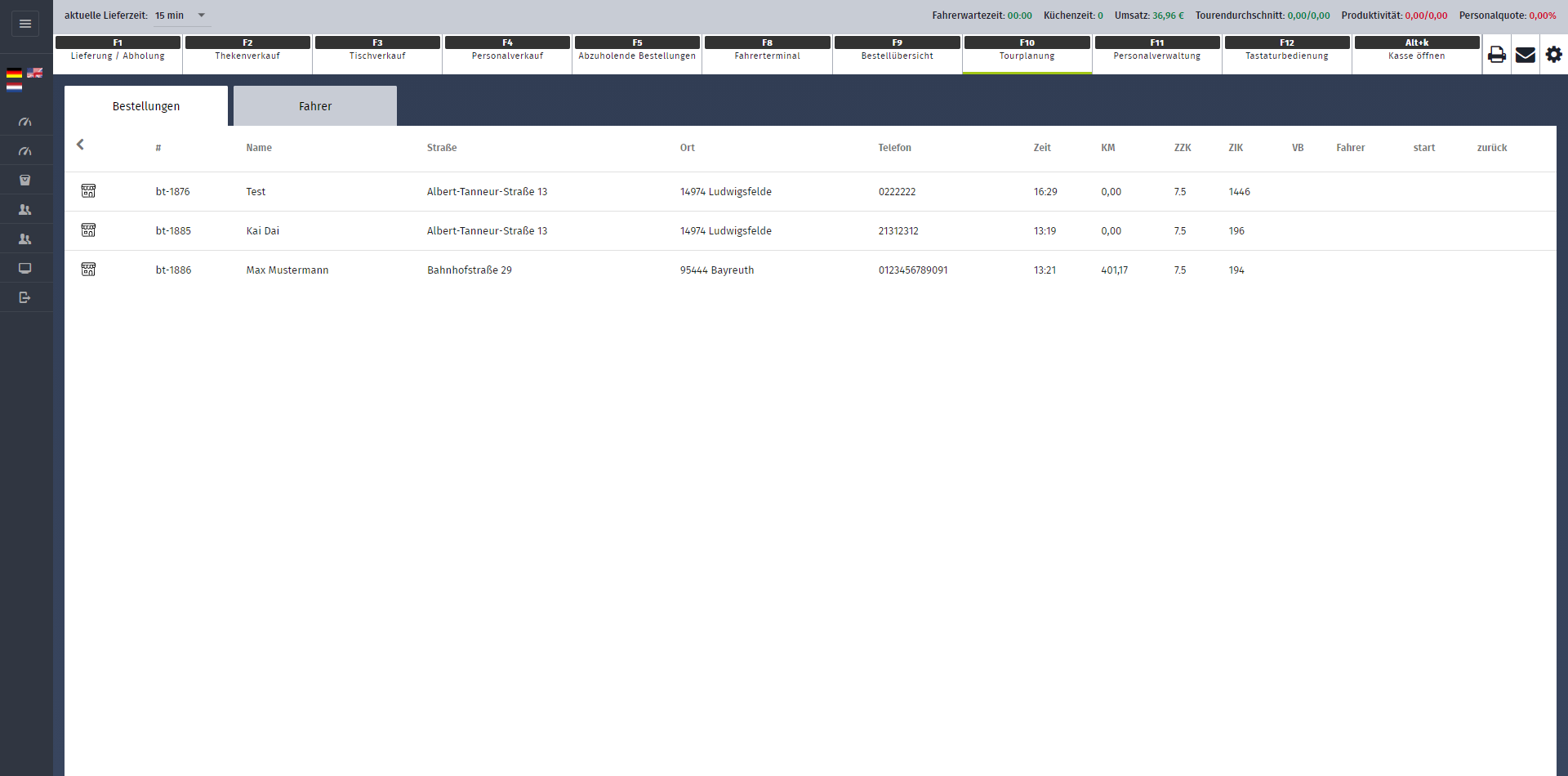

There is also an "Advanced view" that displays additional information and values, but offers fewer functions. In this view, the map is hidden. This view can be opened by clicking on the small arrow pointing to the right in the upper right corner.

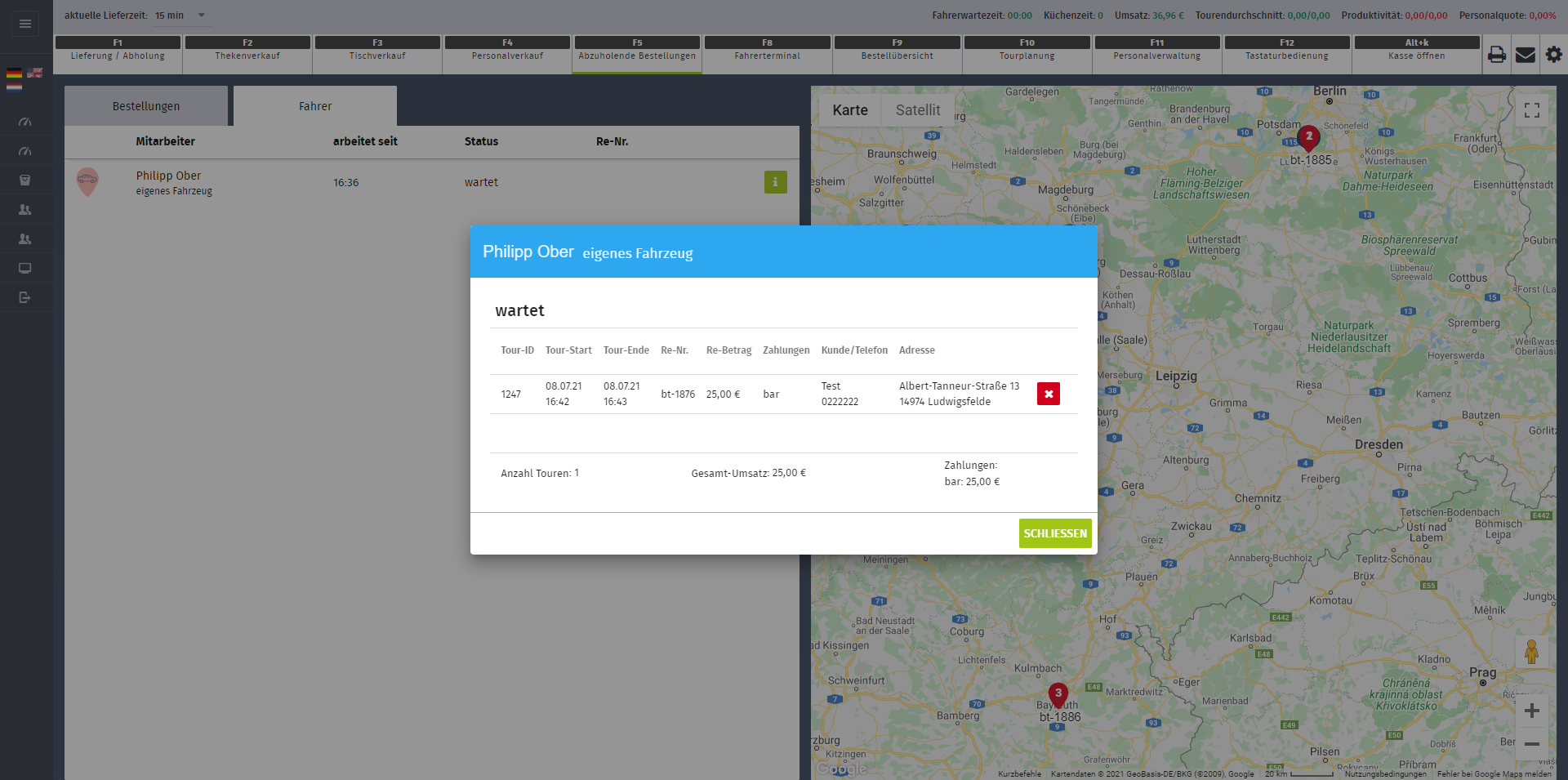

Close advanced view:
Down/up arrow

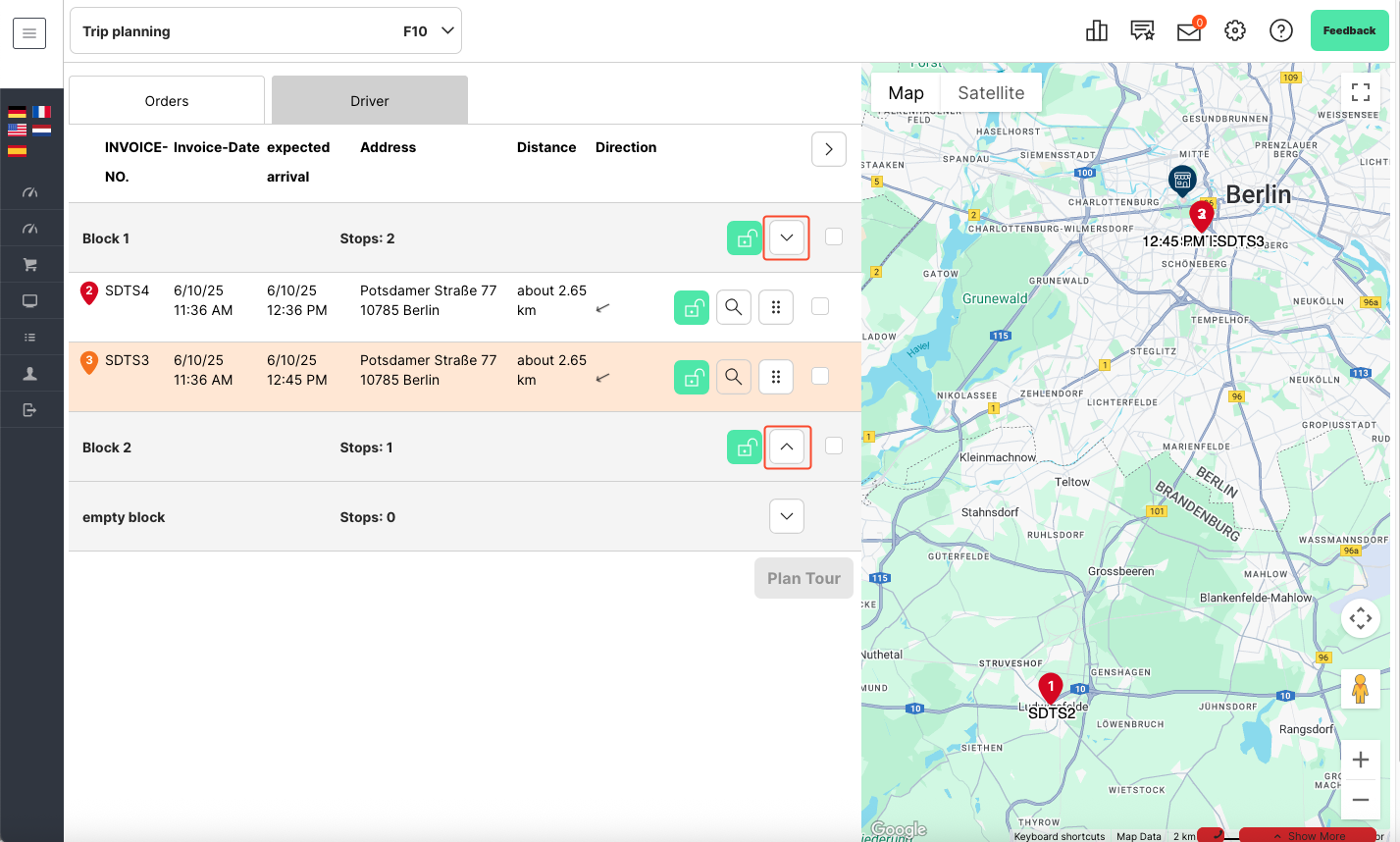

The down/up arrows can be used to expand or collapse the tour blocks.
Additional settings options

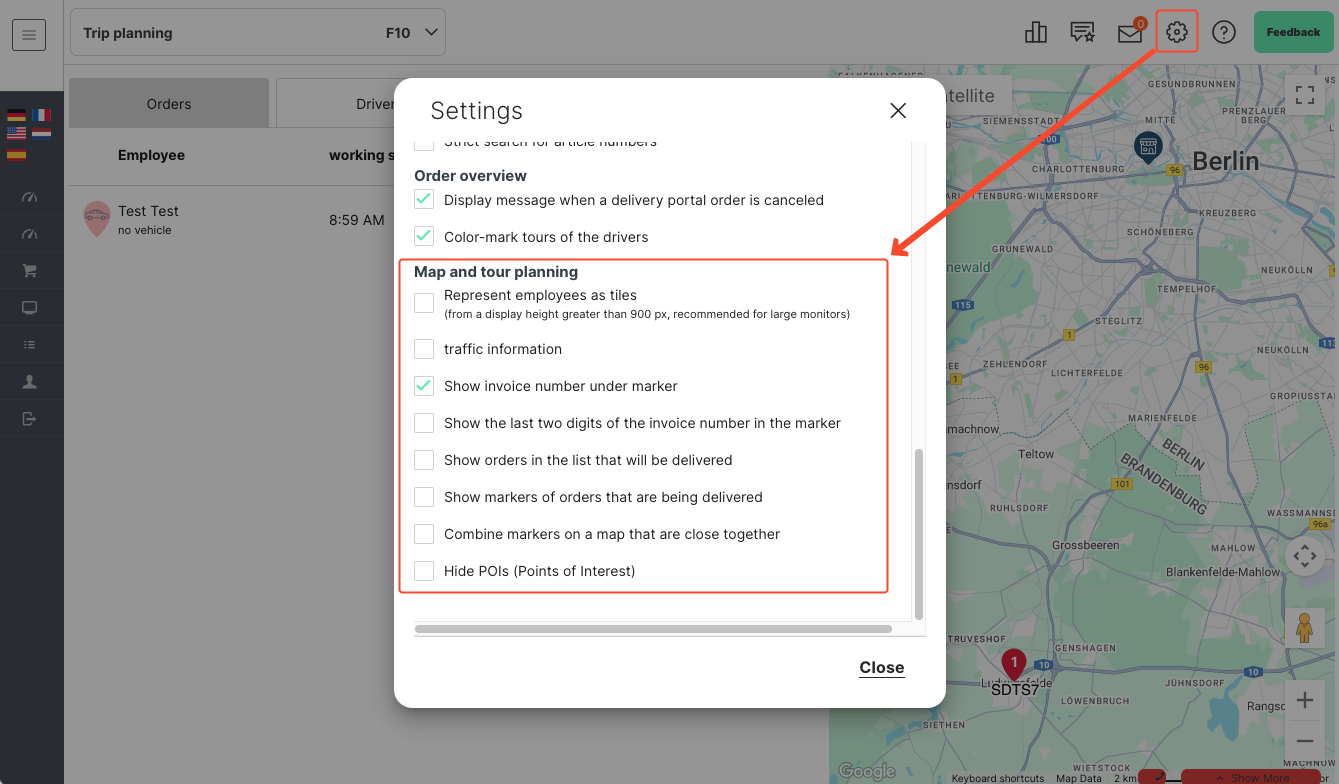

Additional settings are available via the "gear icon" in the upper right corner. There, you can select various options for the map view, such as which markers, routes, and other information are displayed.

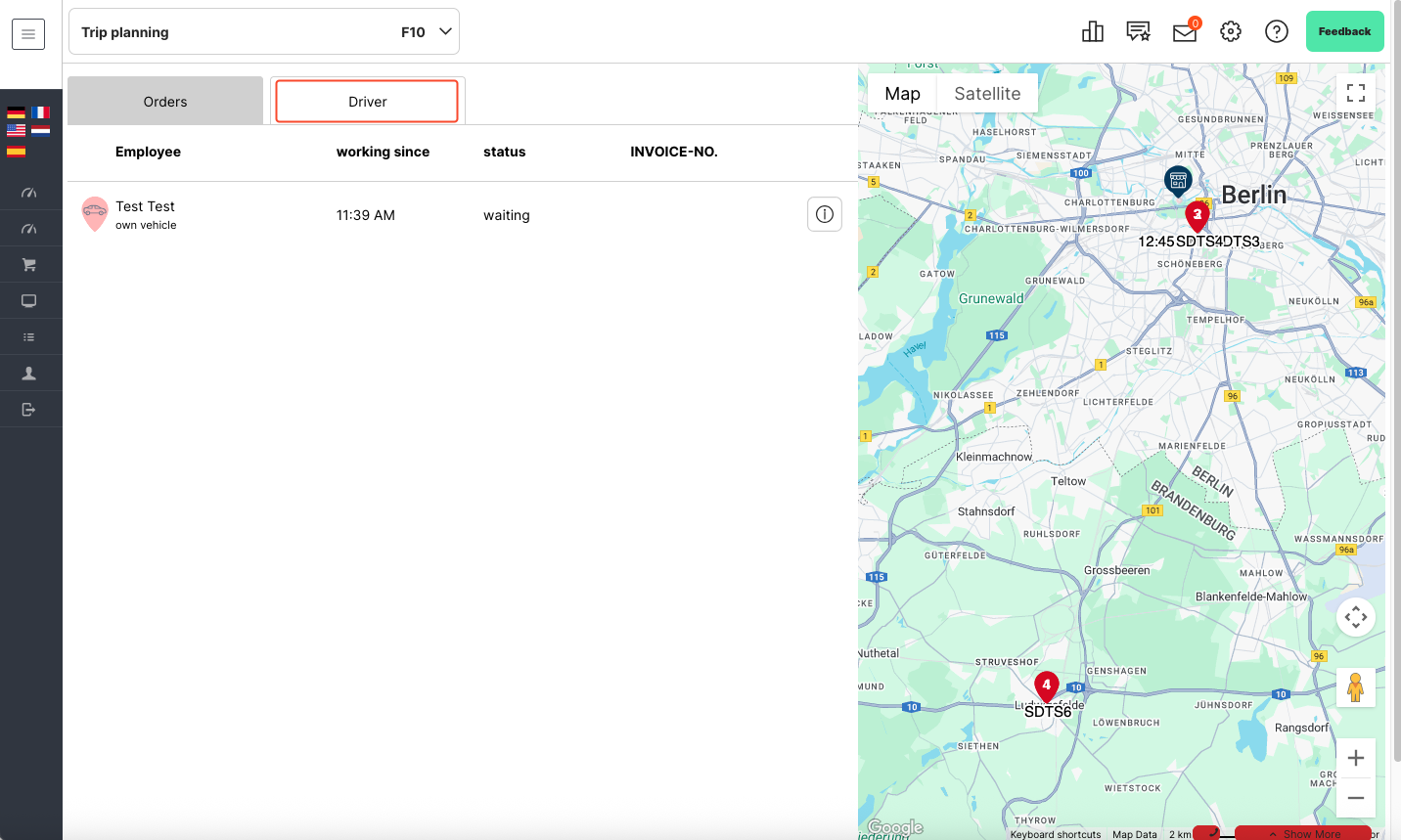

"Driver" tab

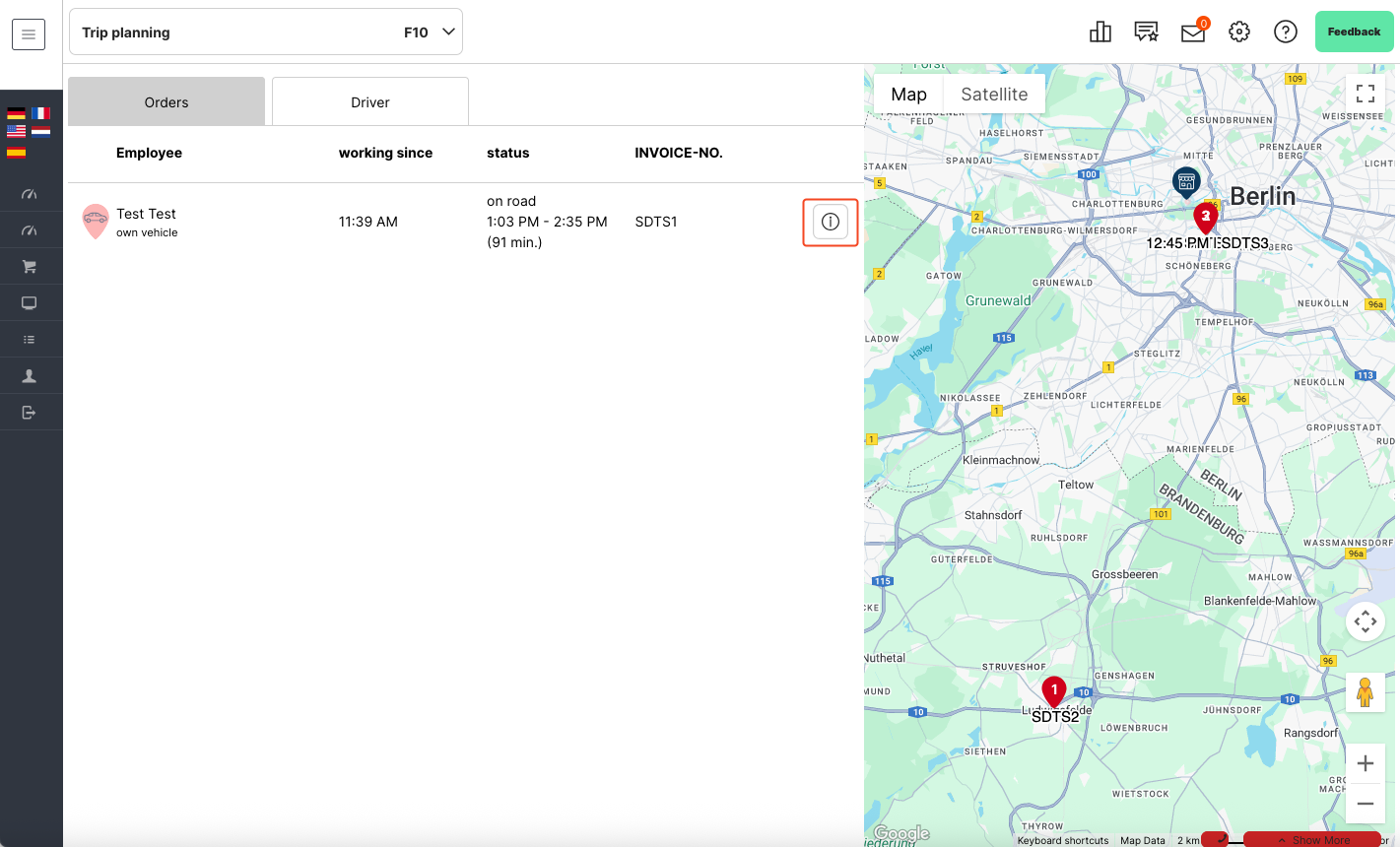

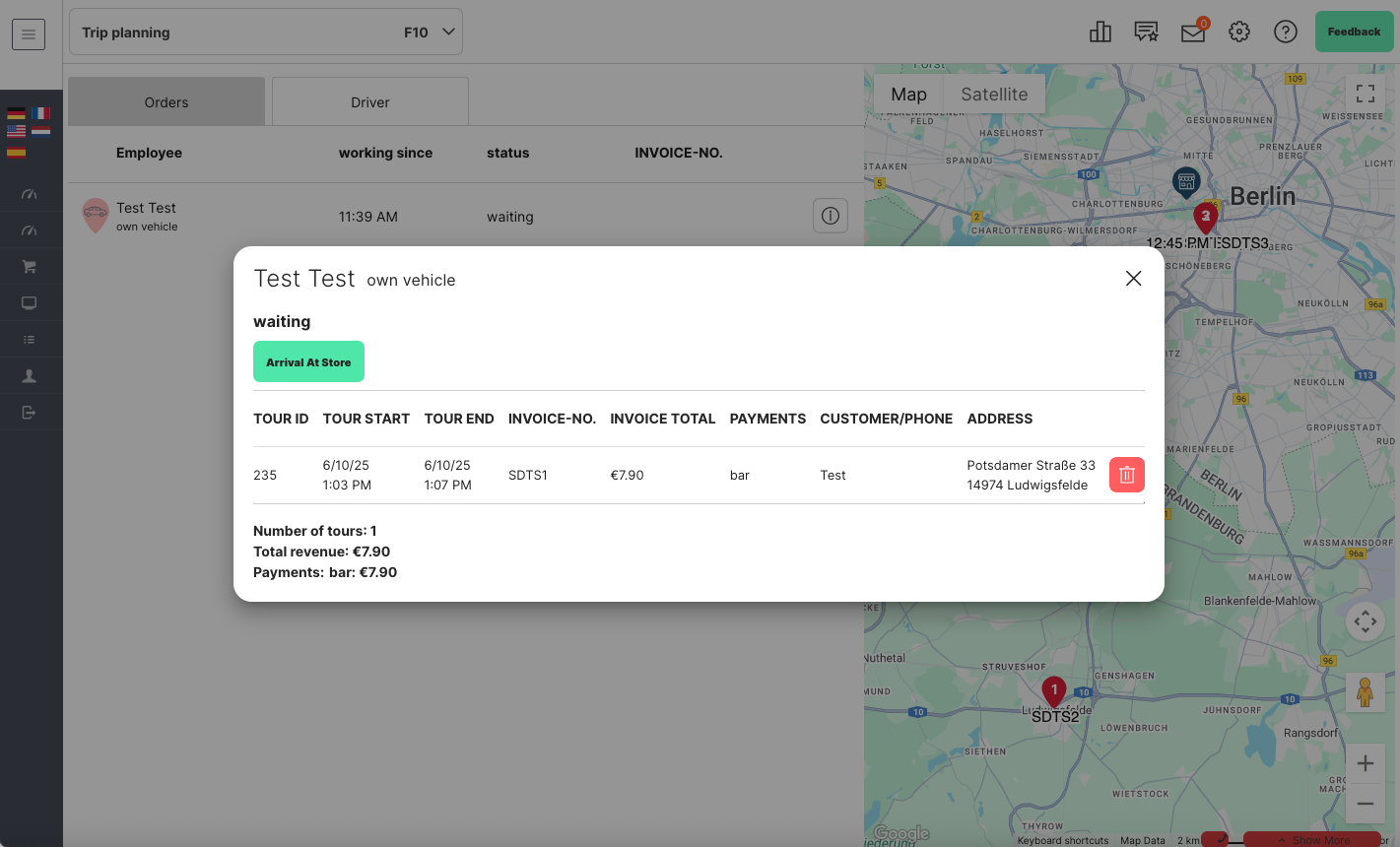

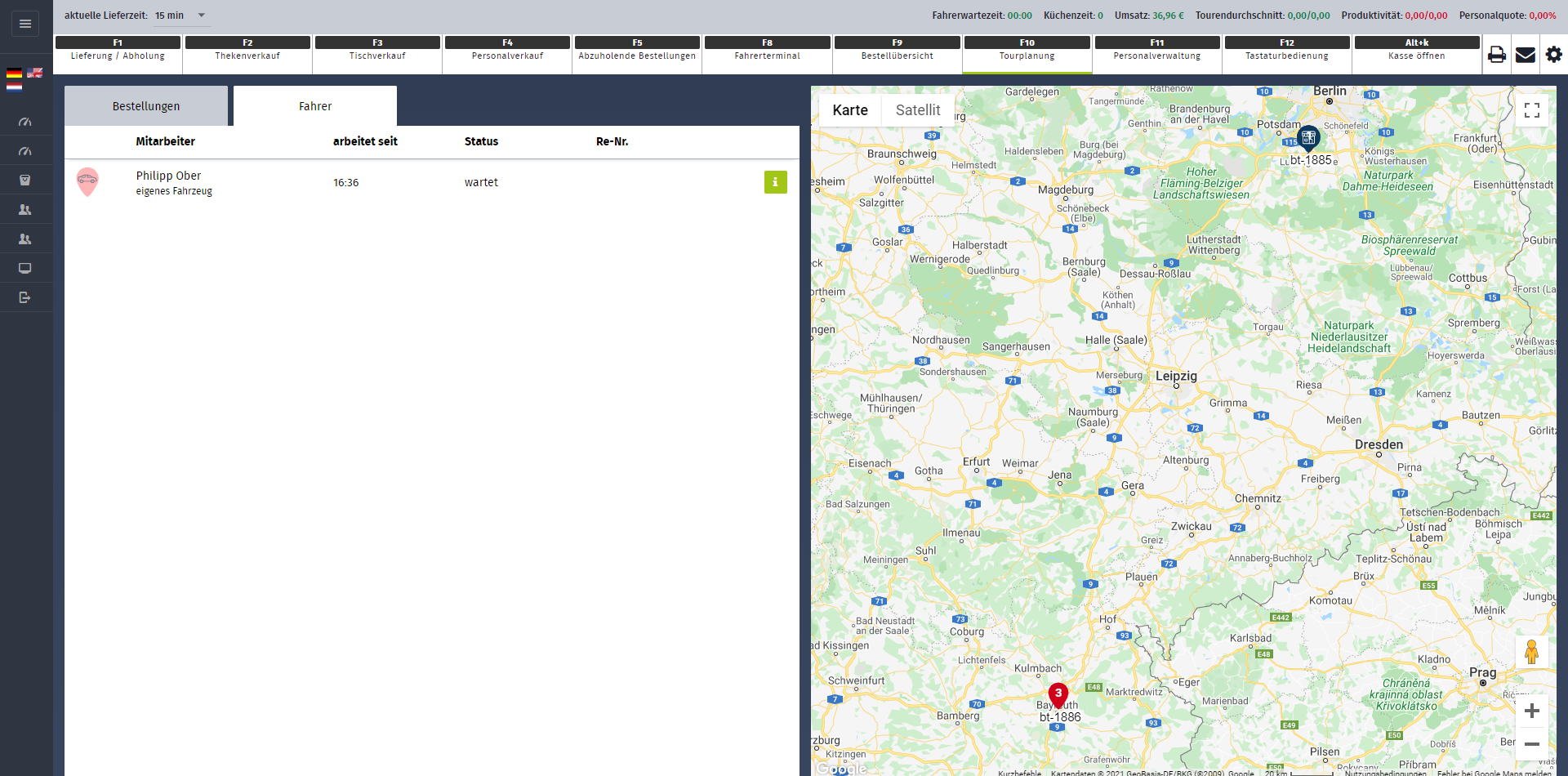

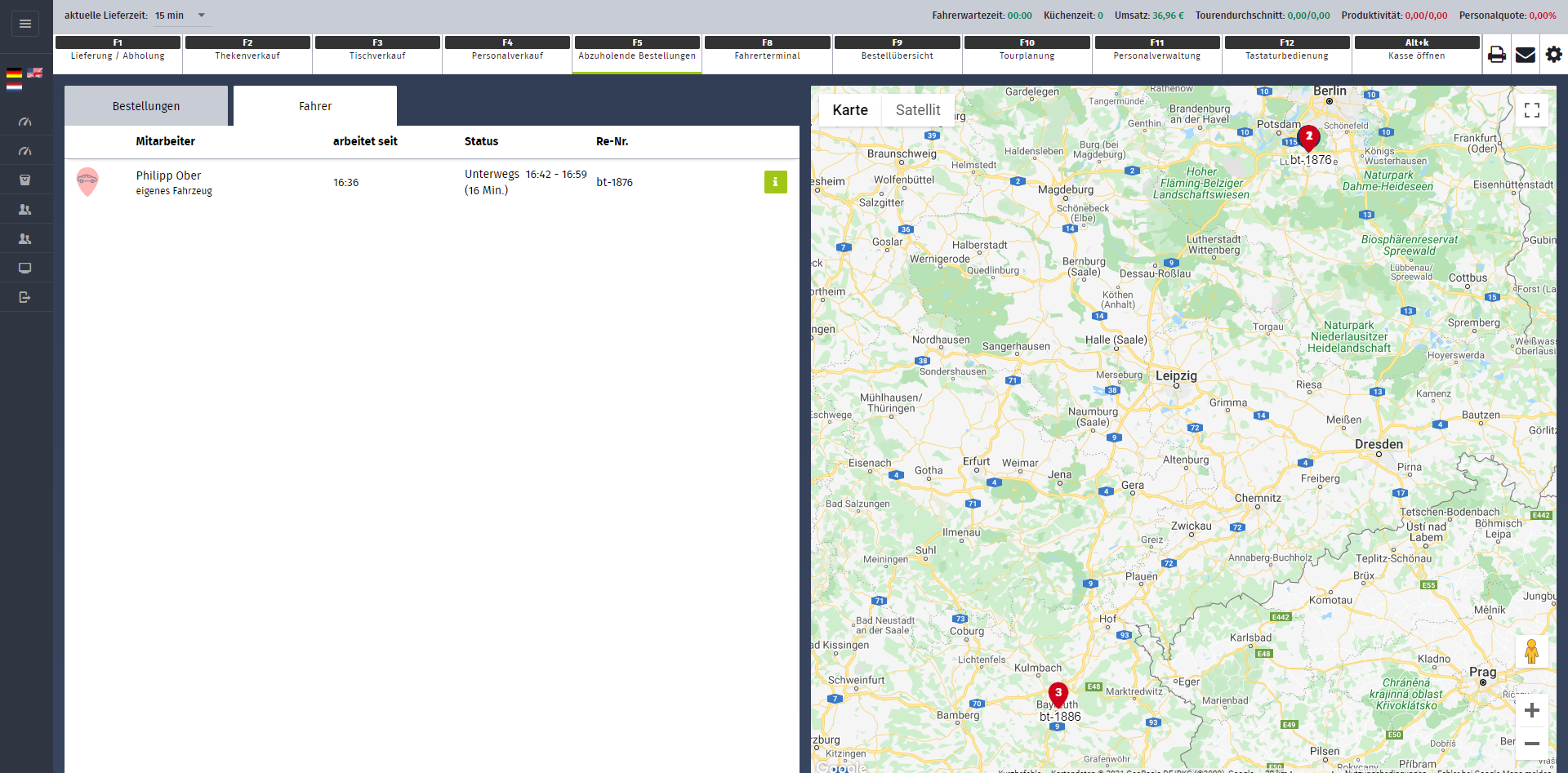

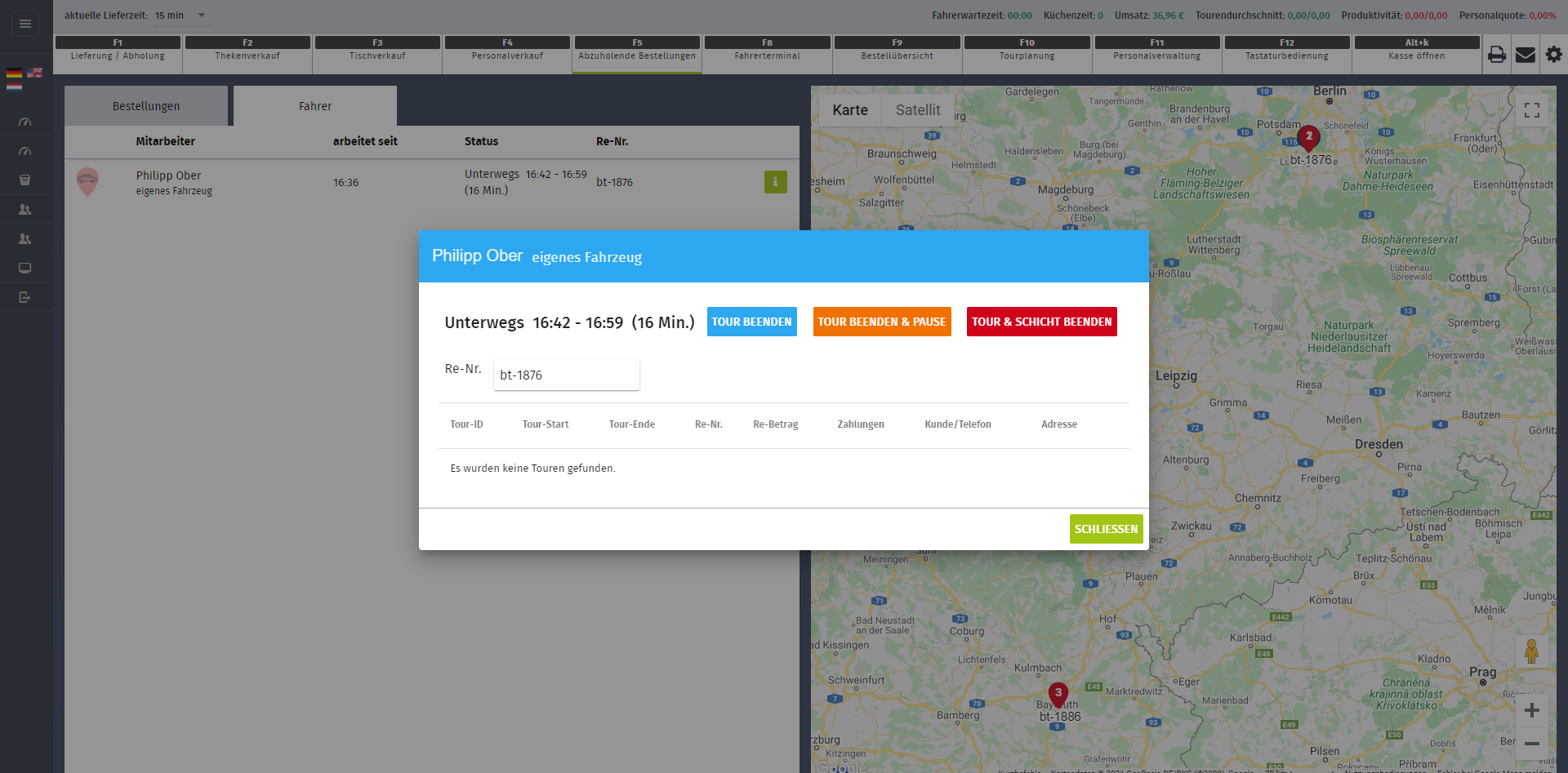

The "Driver" tab provides an overview of which drivers are logged in, currently waiting, on break, or on tour, and how long they are expected to be on the road.
Procedure/Usage
Start order

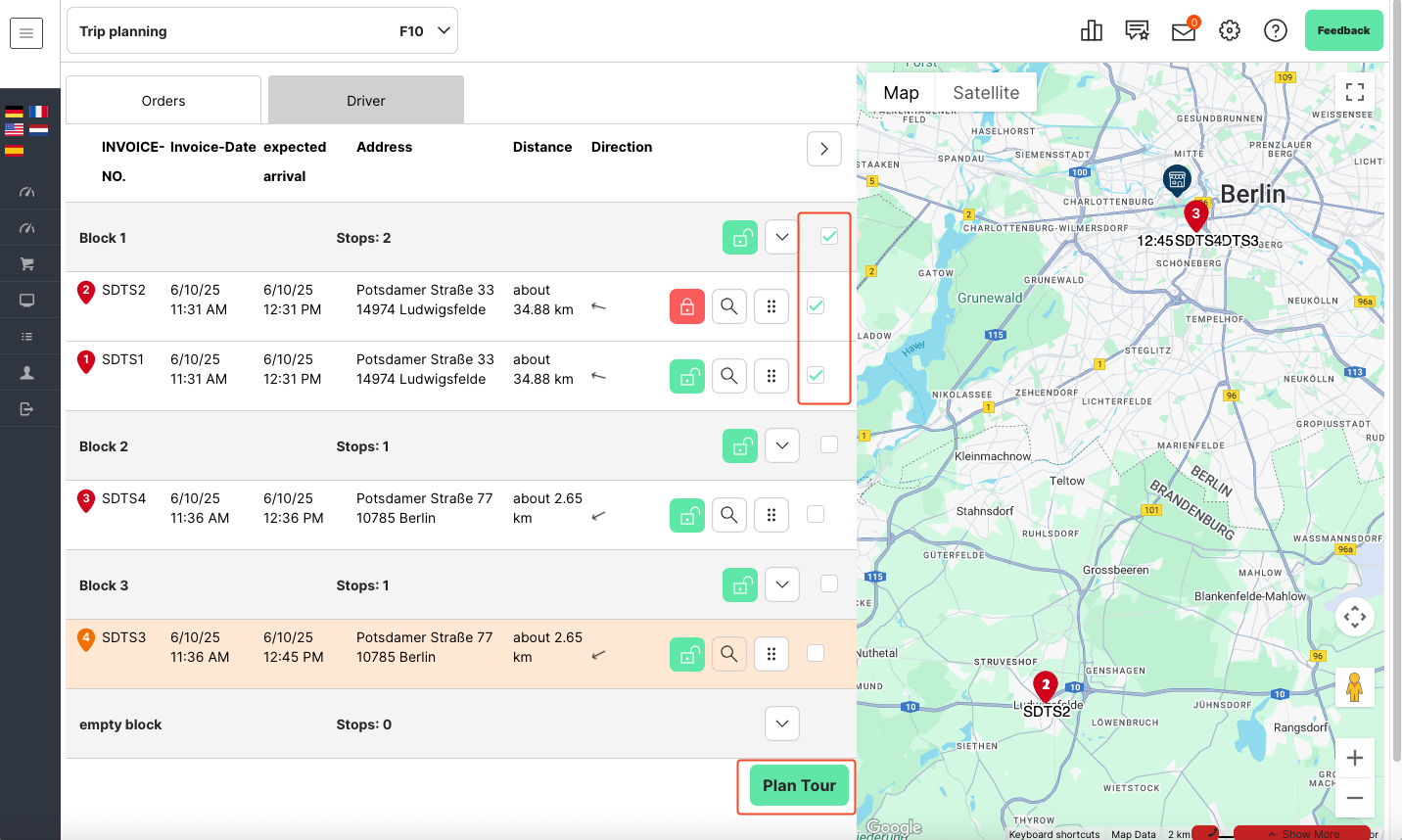

1. First, select the orders to be delivered in the "Orders" tab using the checkboxes on the right-hand side of the entries or tour blocks.
2. Then click on the green "Plan tour" button at the bottom right.

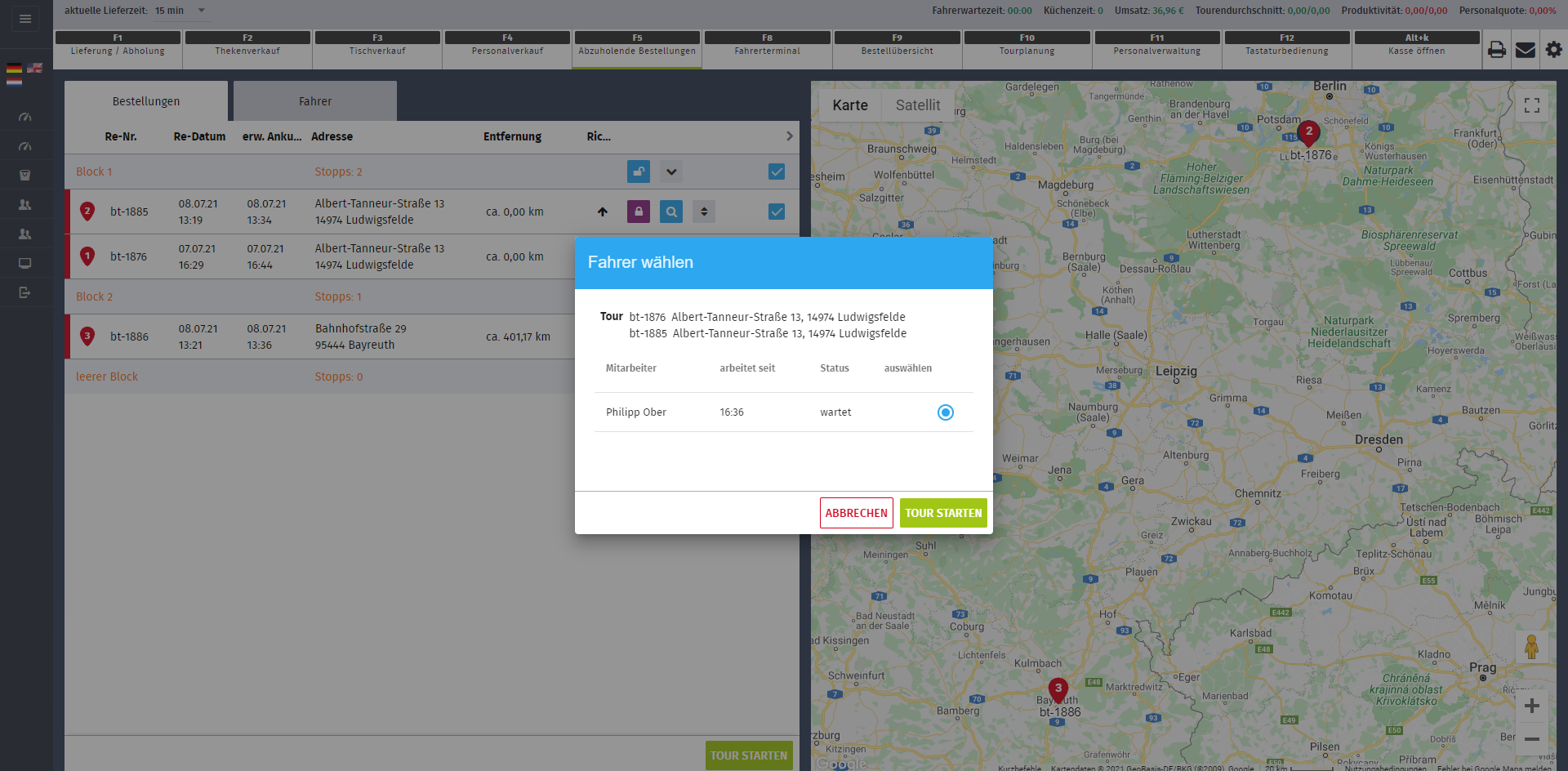

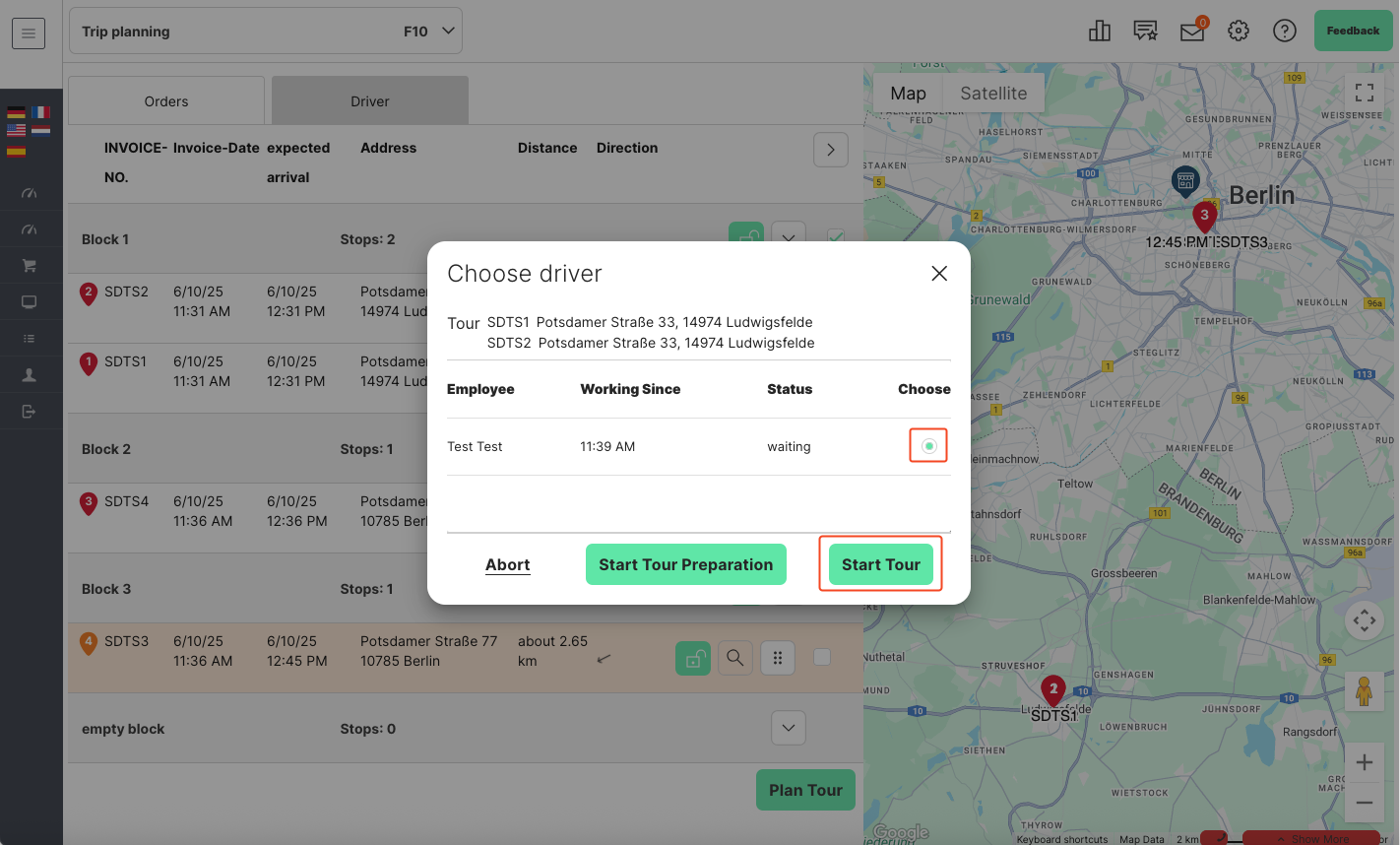

3. Next, select the driver using the round checkbox. Then click on "Start tour".
To cancel, click on the "Abort" button.
