Connect SIDES Pay Terminal in Admin

Connect SIDES Pay Terminal in Admin


Before setting up the terminal:

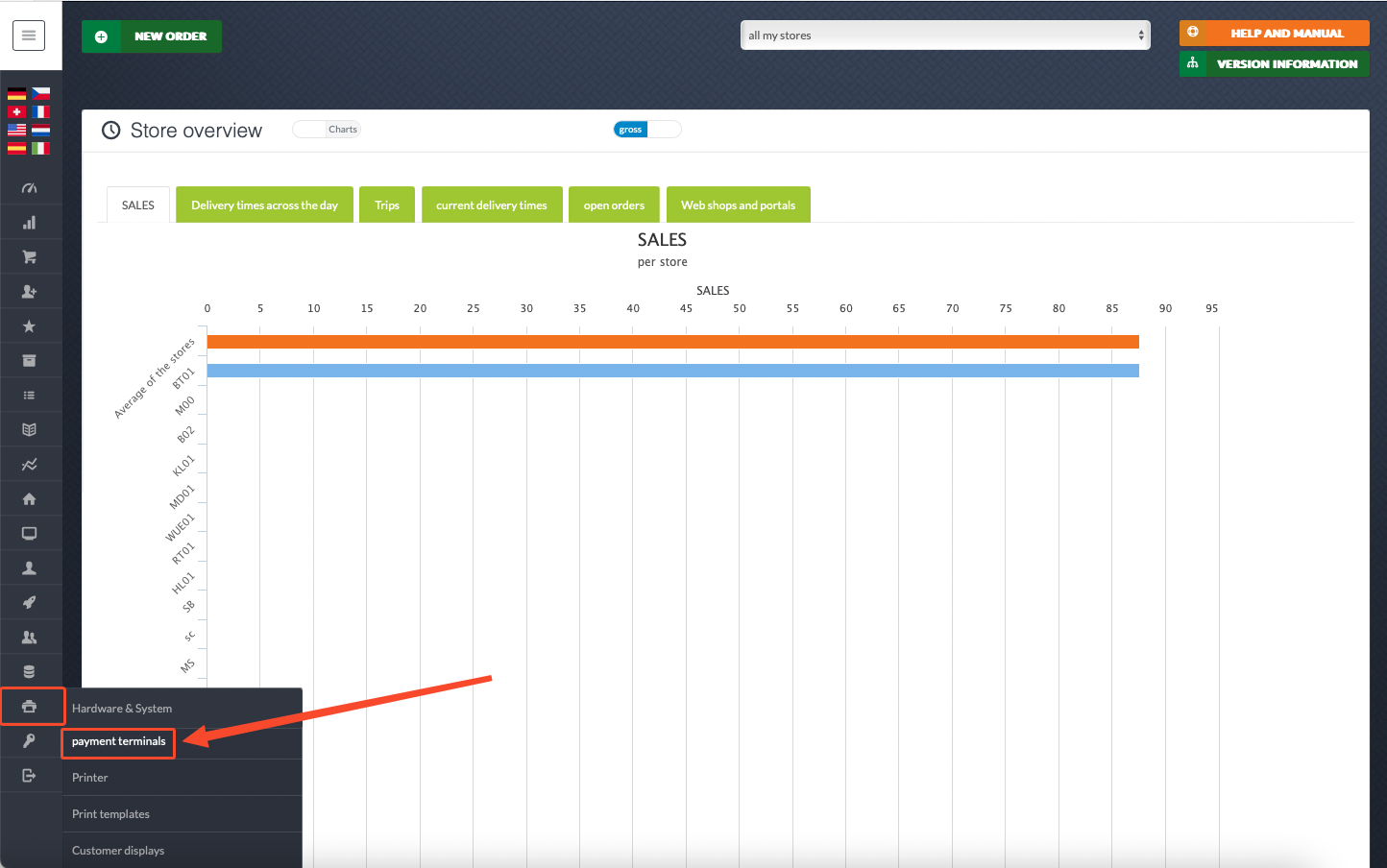

1. Go to Admin -> Hardware & System -> Payment terminals

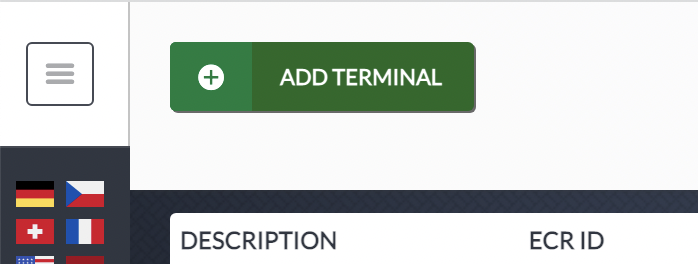

2. Add a new terminal with click on "Add terminal".

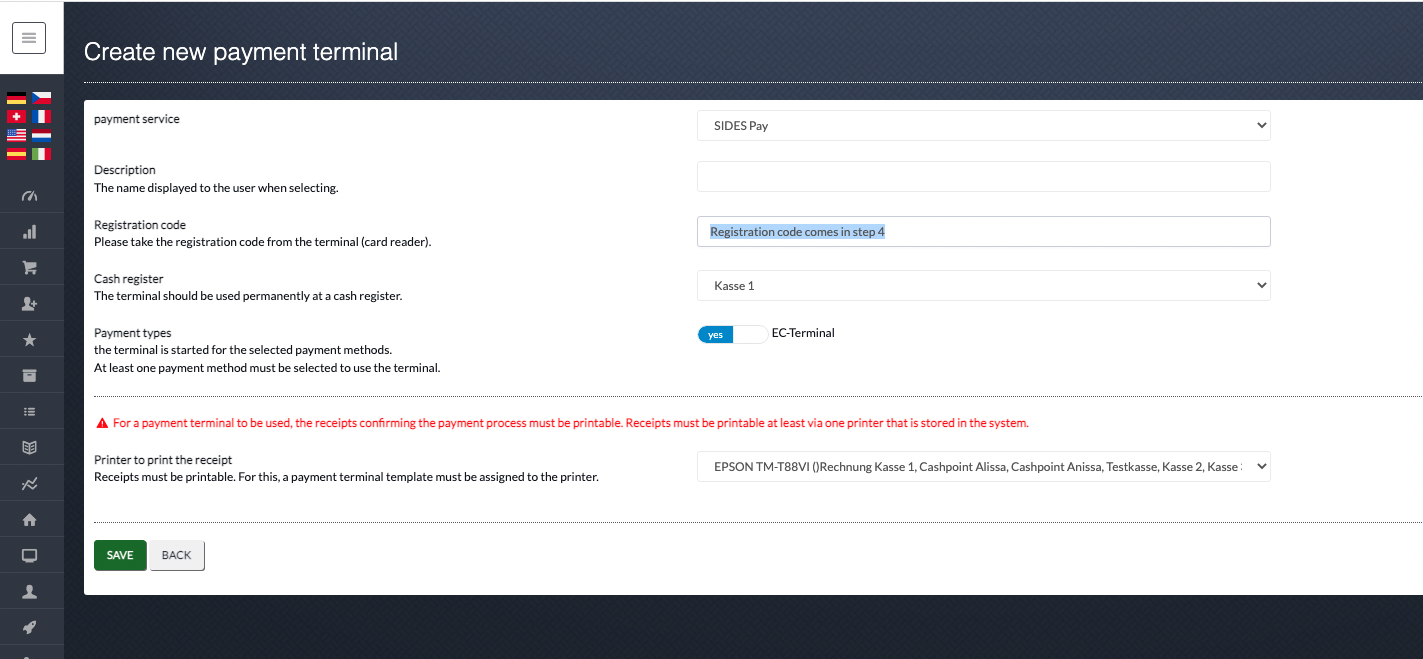

3. Set up the SIDES Pay payment terminal according to this example.






4. Connect the SIDES Pay Terminal.




Press and hold the ON/OFF button on the right side of the terminal for about 3 seconds.
In the device settings, search for the corresponding WLAN and connect.

The WLAN encryption must be set to WPA2 + WPA3.



The terminal must be in the same network / WLAN as the hardware of the cash register / POS.

Swipe your finger from LEFT to RIGHT to access the settings.





The admin PIN is: 07139




At the second position from the bottom on: Generate pairing code.
-> A new CODE is ALWAYS generated. -> This must be entered at "Registration code" in the Admin (step 3).




5. Done - The terminal is now ready for immediate use.

6. On request, a picture submitted by the customer - JPG, PNG with a size of up to 2 MB or a GIF file with a size of up to 4 MB can be stored on the terminal.

The size must be 720b x 1280h.




One of the following three printing options must be set up:

7. a) If customers want the payment confirmation from the Stripe Terminal to be printed on the invoice receipt:

   1. Set the payment terminal to YES at the bottom of the Print tab in the store.

   2. Check the print template of the invoice for the existing %terminalReceipt% placeholder and insert it if necessary.

   3. In the payment terminal under Hardware in the printer dropdown, switch to "Use invoice printer. . . . ".

      or

7. b) If a single printout is required:

   1. Set the payment terminal to NO in the print tab at the bottom of the store.

   2. Delete any %terminalReceipt% placeholders in the invoice print template.

   3. In the payment terminal under hardware, select the printer from the drop-down menu.

      or

7. c) If the store does not want to print the payment terminal receipts:

   1. Under Hardware create a printer without values ​​(fake printer) with the option to print the payment terminal.

   2. Select "fake printer" in the payment terminal under hardware in the printer dropdown.
